At a Glance

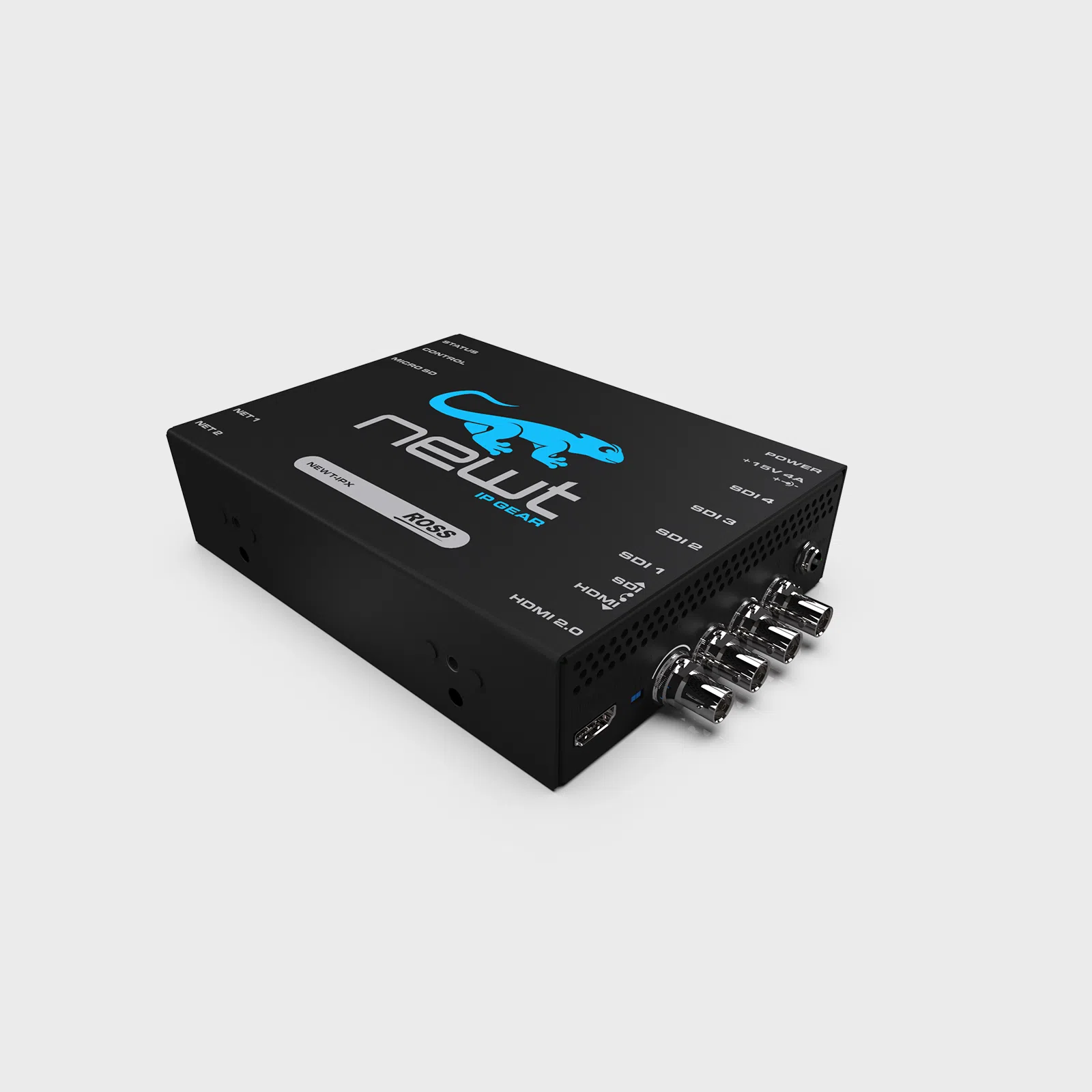

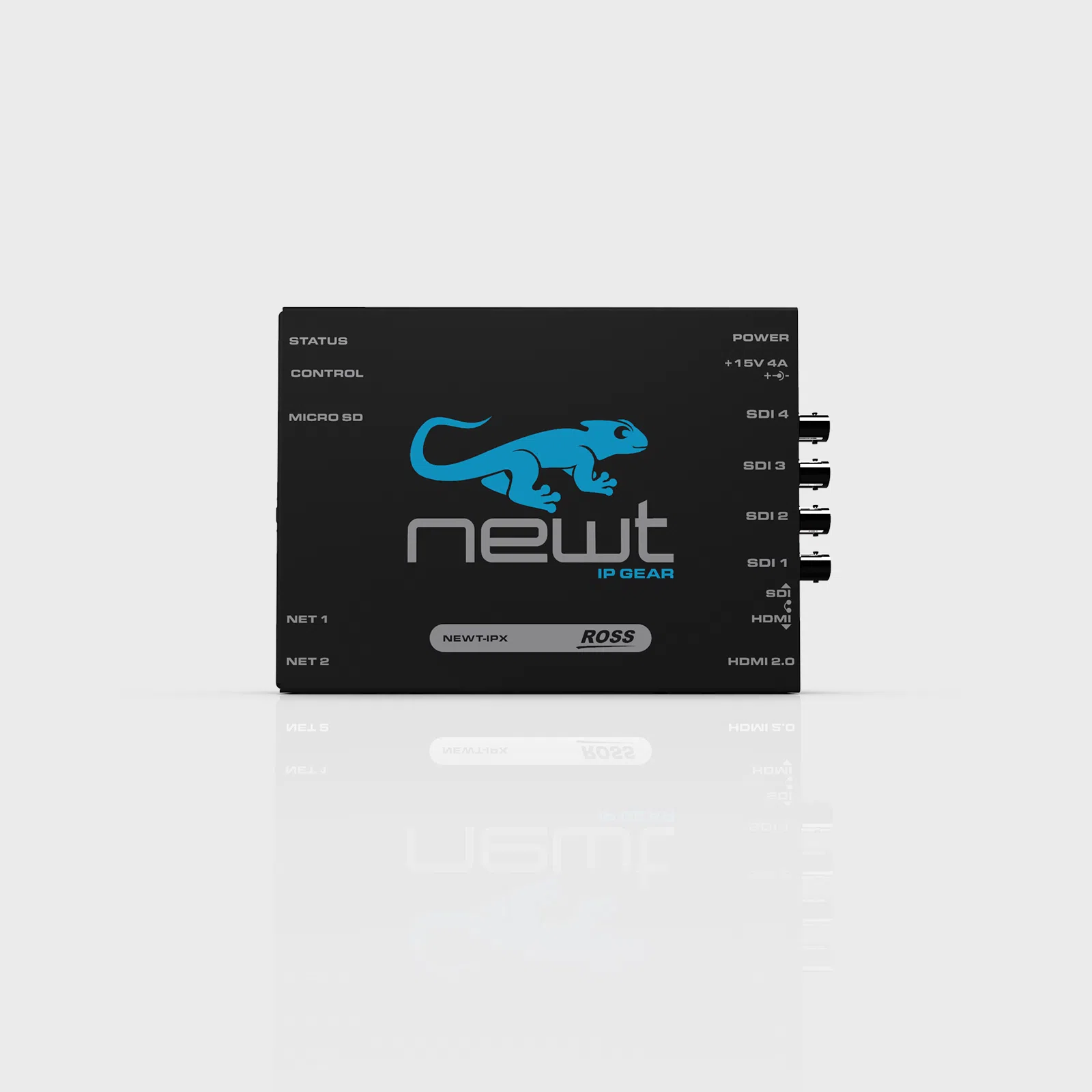

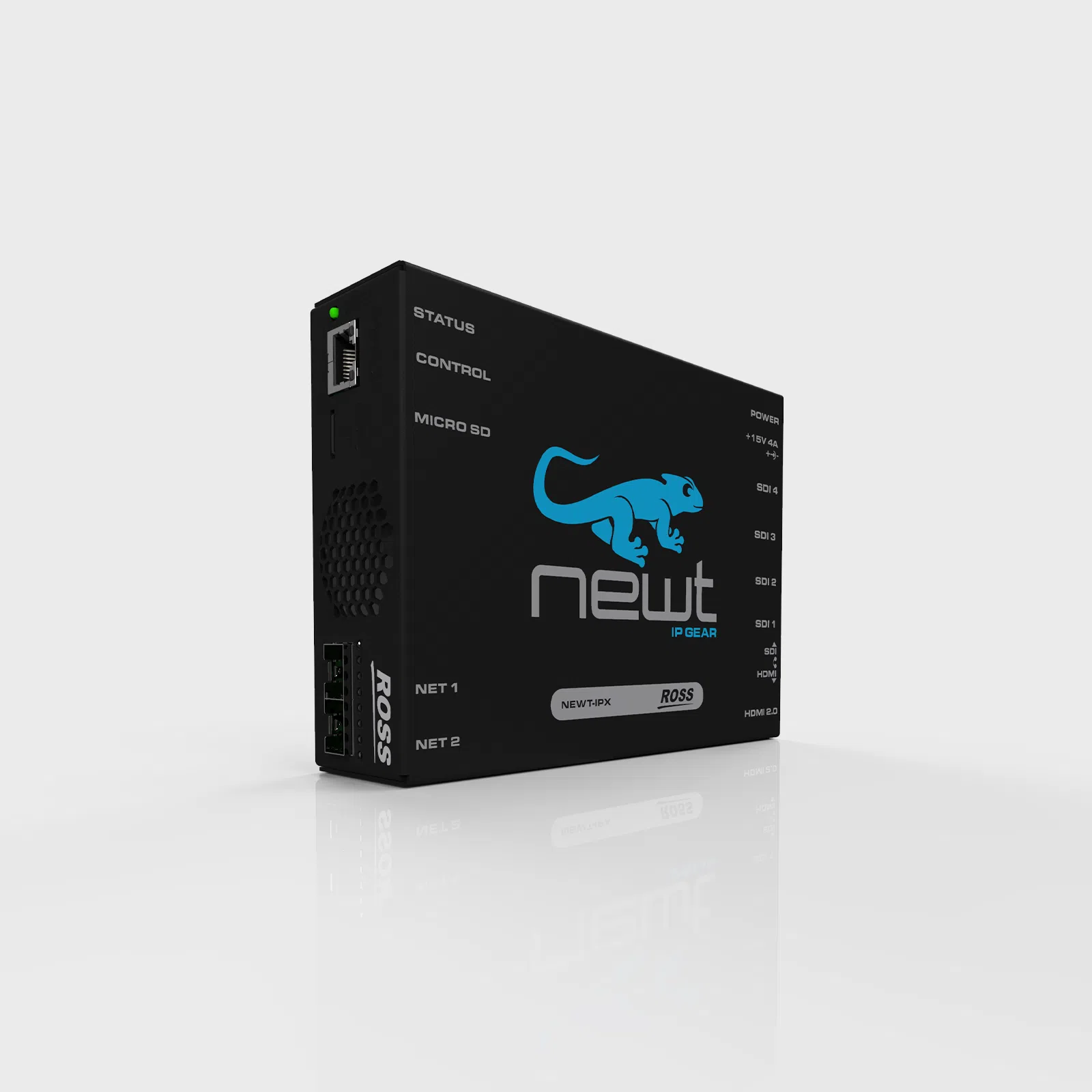

Compact UHD-OVER-IP SDI / HDMI Converter
A window into your IP media network.
Newt adapts to our rapidly changing IP environments, bridging Quad-SDI and HDMI 2.0 interfaces to JT-NM tested ST2110 media streams. Newt is fluent in NMOS, EmBER+, and DashBoard open standards protocols giving you the freedom to use it in the IP environment of your choice.

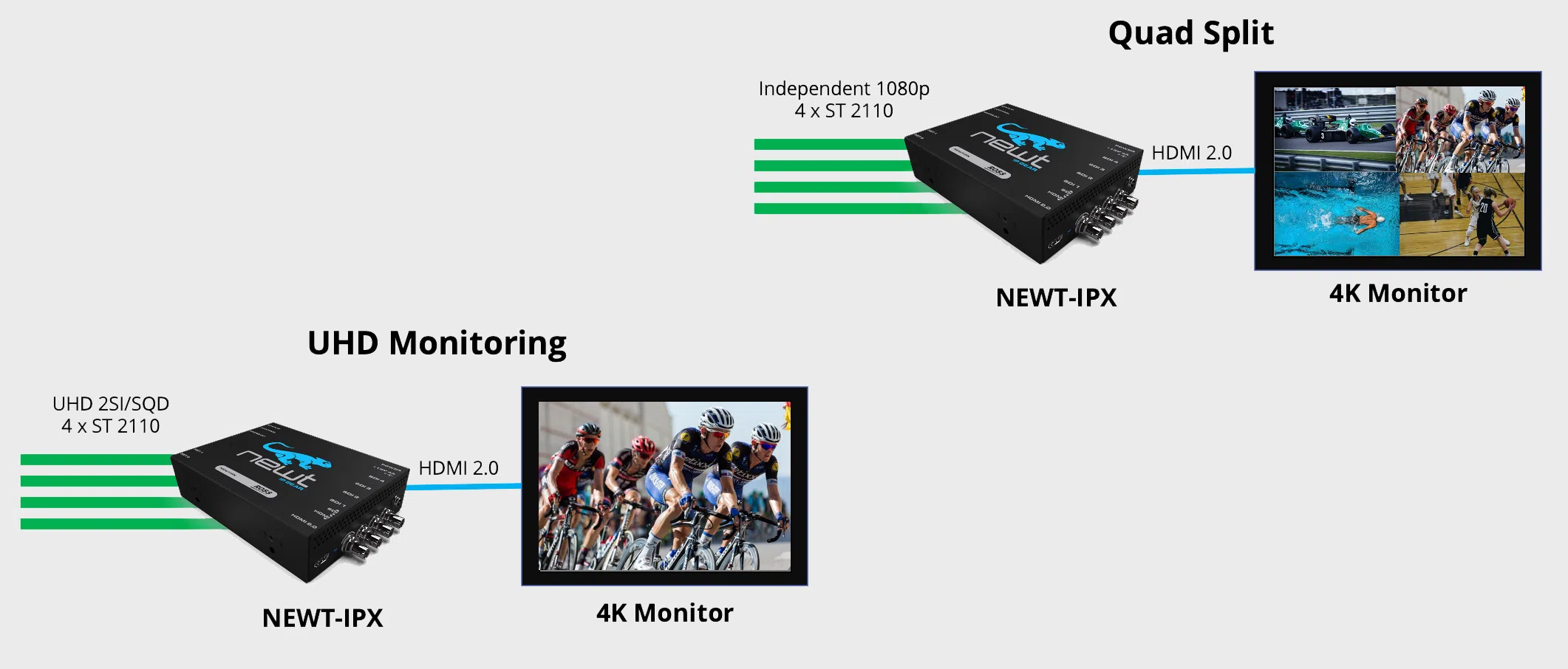

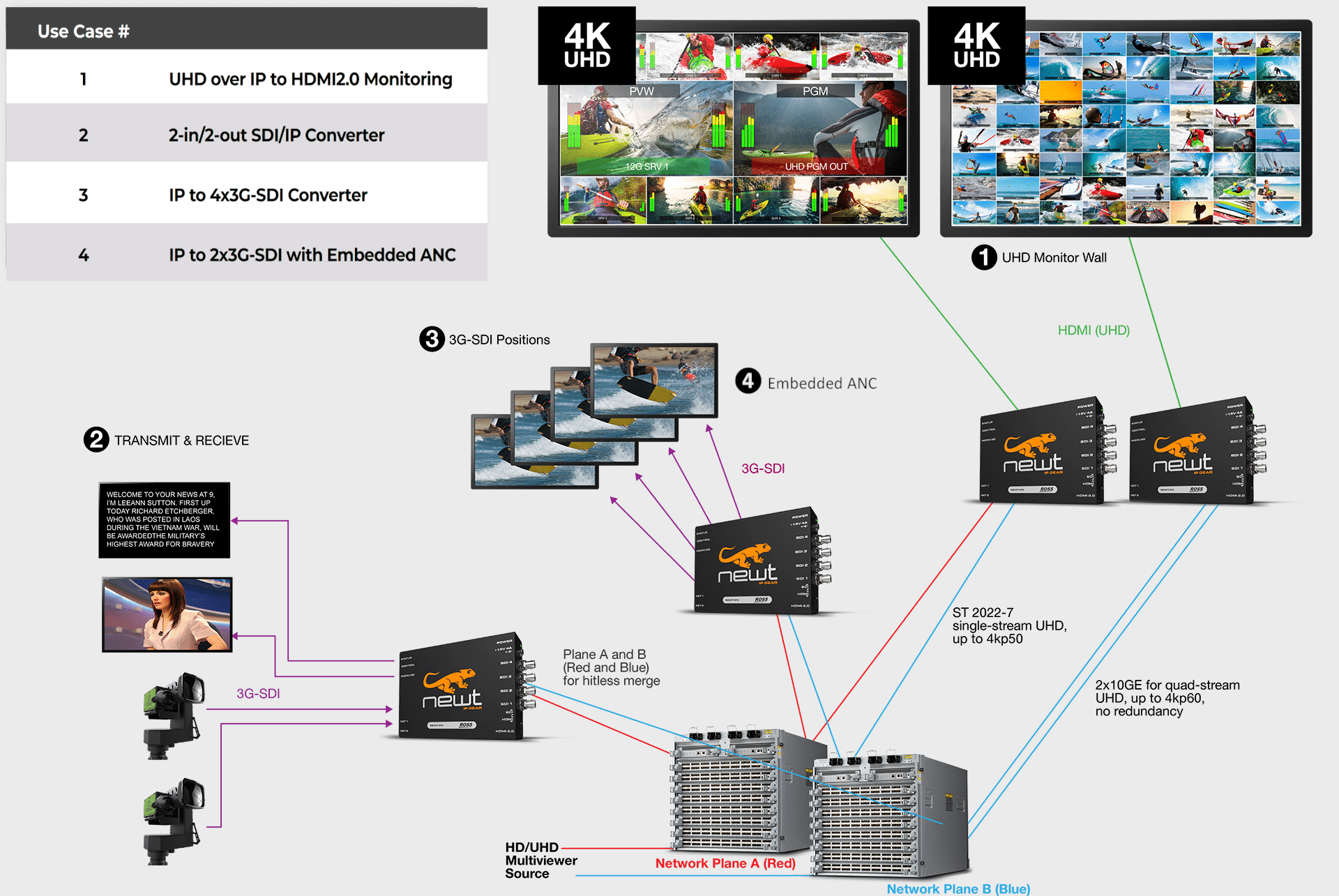

Newt provides performance and reliability in a compact form factor. Convert and process SDI and IP signals from HD to UHD. Embed ST 2110-40 ANC streams into your SDI outputs. QUAD-SPLIT enables simultaneous viewing of four independent videos on a single HDMI 2.0 output and gearboxing lets you monitor SQD and 2SI UHD streams.
Standards compliance gives you the freedom to run Newt from our popular DashBoard™ control system, Ultricore BCS or any preferred 3rd-party control system using industry standard protocols such as Ember+ and NMOS. Newt was designed with open control connectivity in mind.
Robust and Flexible Design
Compact form factor, flexible mounting options and robust mechanical features allows IGGY to effortlessly adapts to your environment. This includes redundant power supplies and locking connectors such as PoE, Tascam DB25 connectors, Bi-directional MADI SFP port, dual redundant Gigabit Ethernet audio interfaces, 4x isolated Tally out +8x TTL GPIO controlled via RossTalk and TSL.

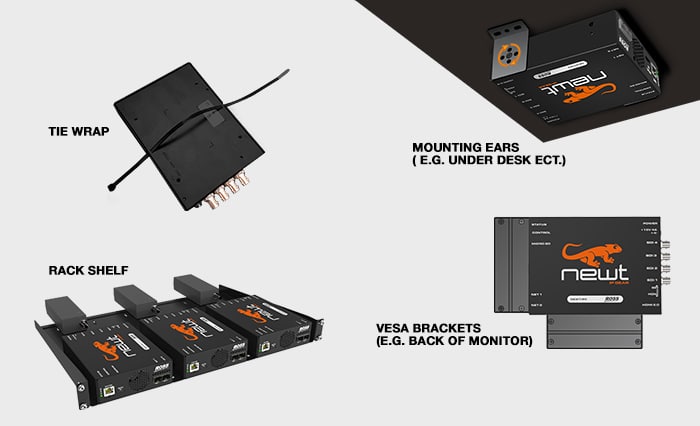

Space comes at a premium. A small form factor combined with flexible mounting options enables Newt to scale a wall, zip-tie to a post, hide under a desk or sit behind a display. Optionally, some may prefer the combination of three Newts lined up on a rack shelf.
Flexible Audio & Video Mapping
Live productions require dynamic audio and video distribution. NEWT’s one-to-many mapping allows assigning any IP flow to multiple outputs. It supports multiple audio streams per output adapting easily to any audio stream and channel structure. An integrated audio router allows easy shuffling and assigning of audio channels where needed.
We are committed to ensuring that your investment in Ross products interoperates with third parties. Ross Video’s SMPTE ST 2110 technology is JT-NM Tested and amongst the most mature and widely deployed in the industry, both directly in Ross products and through its OEM & Developer Solutions program.
Compact IP Gear that adapts to your environment.
JT-NM Tested, AIMS-compliant SMPTE ST 2110 signal conversion and processing. Flexible stream handling ensures compatibility with your network and ST 2110 devices.
Flexible mounting options enable Newt to scale any wall, zip-tie to a post, hide under a desk, behind a display, or for three of them to sit comfortably on an optional rack shelf.

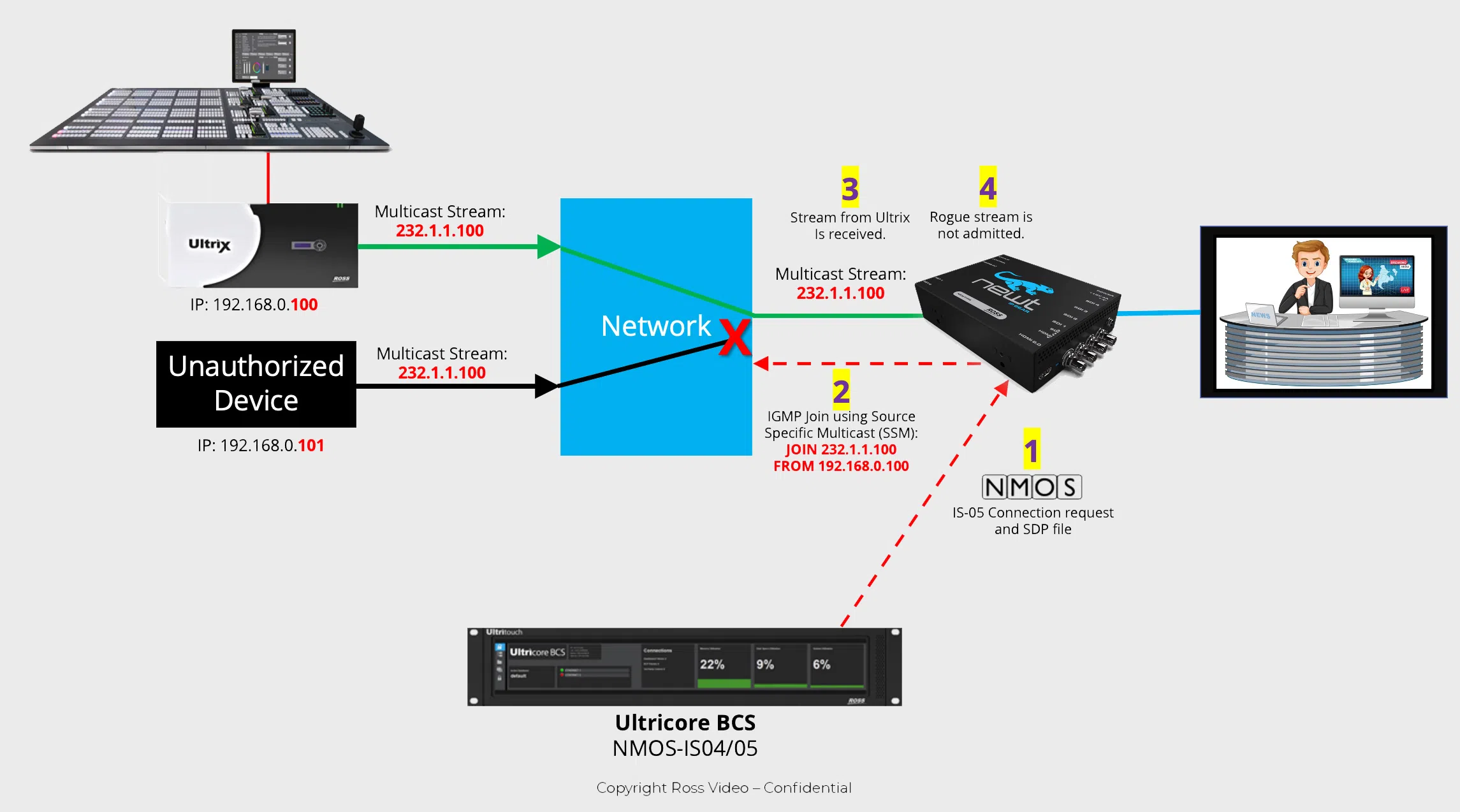

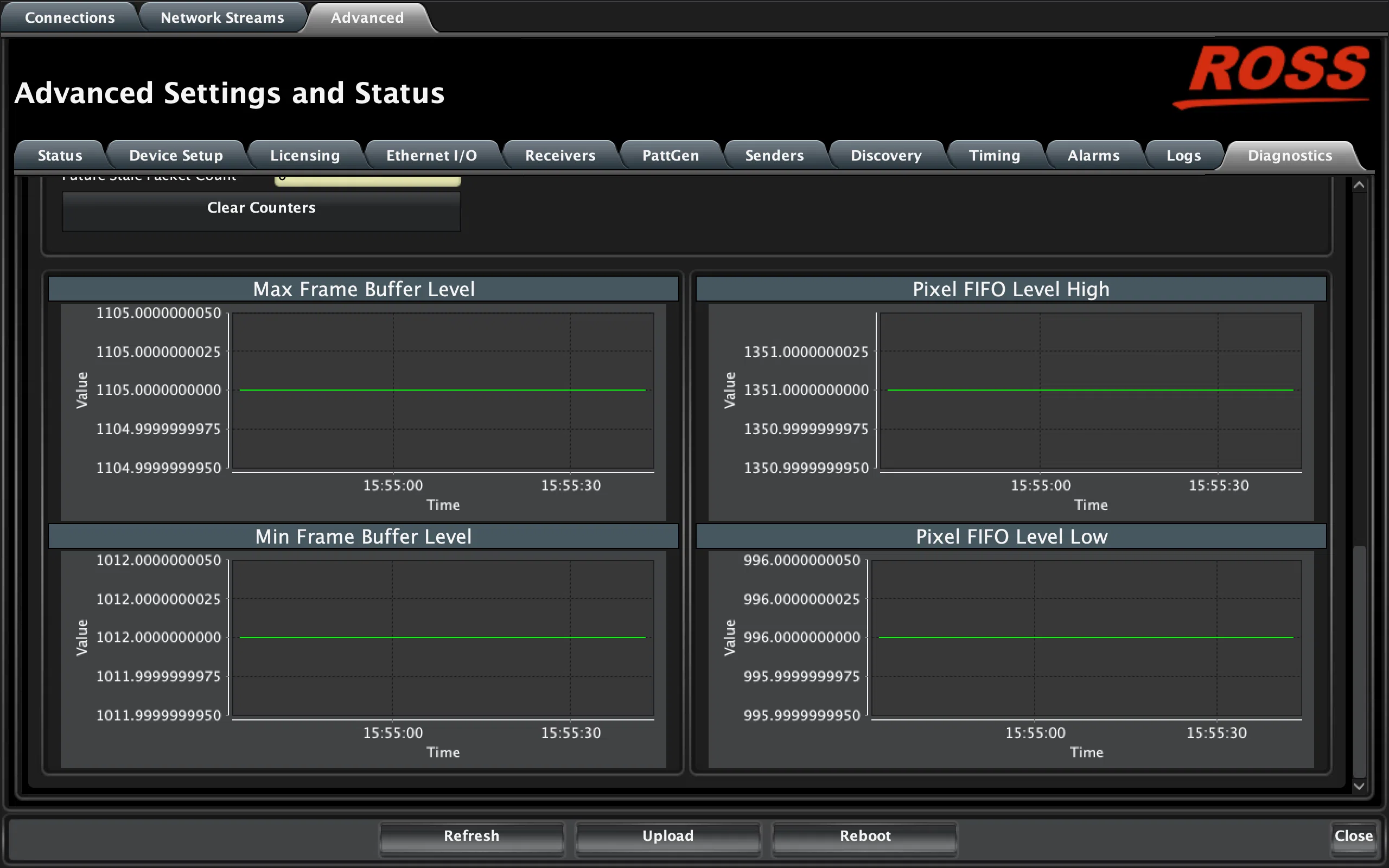

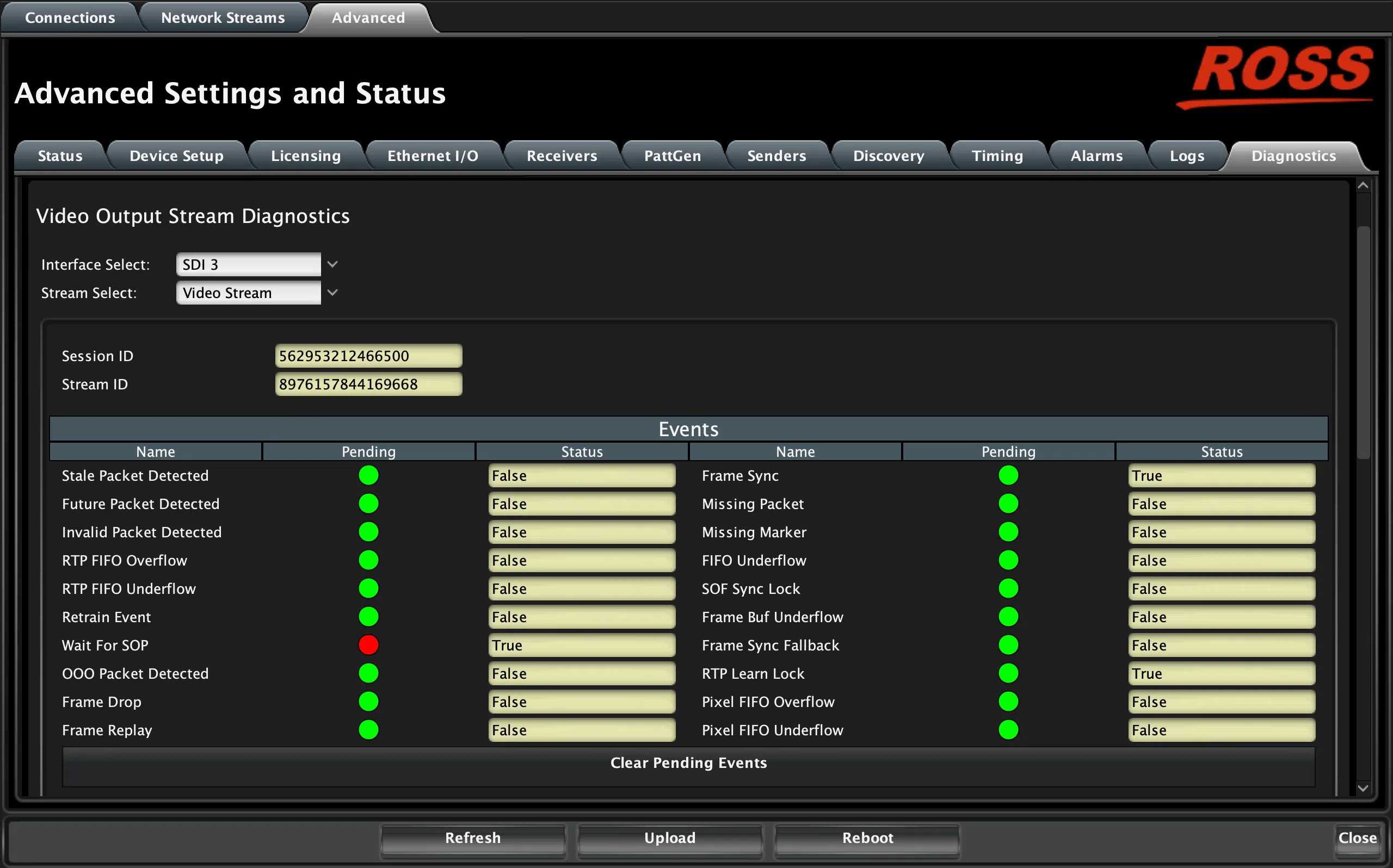

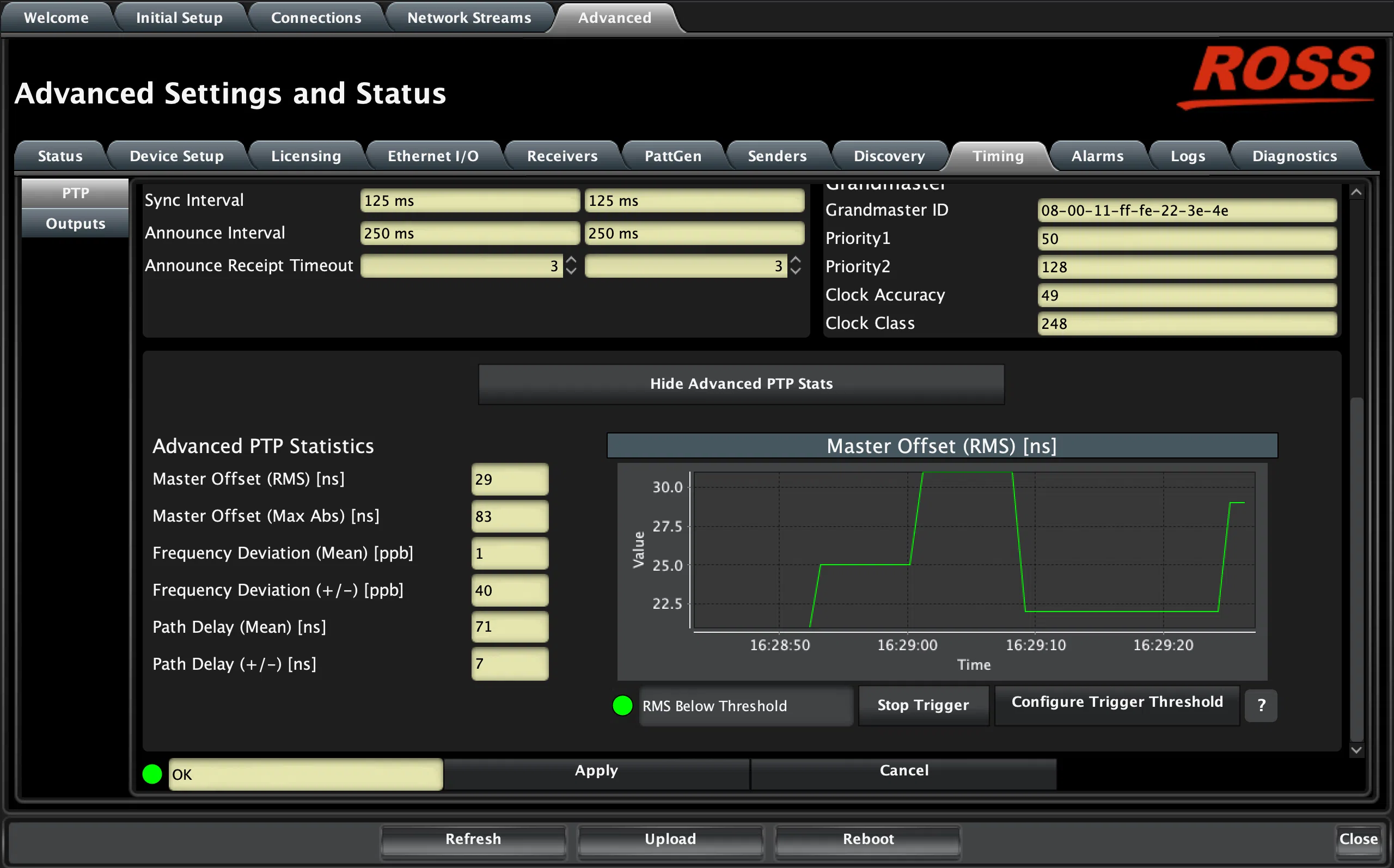

NEWT respects network security. It keeps out unauthorized streams using Source Specific Multicast (SSM) while providing logging, PTP history and network diagnostics to help you sort out any unwanted network events.
Various control API:
- DashBoard for discovery, device configuration, and connection control
- EmBER+ connection control
- NMOS IS-04 and IS-05 discovery, registration and connection control
- A published JSON API for integration into 3rd-party control systems of the full range of Newt configuration and control functionality

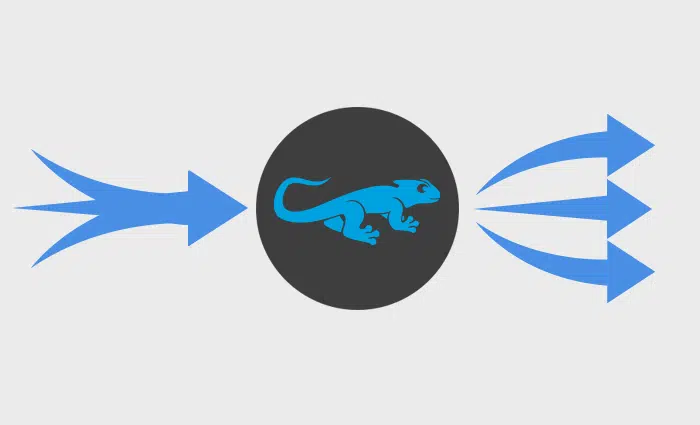

Flexible Audio And Video Mapping
- One-to-many mapping allows any IP flow to drive one or many outputs, simplifying your operation.
- 1-80 channels per stream and up to 64 audio streams enable maximum flexibility and interoperability
- For example, applications requiring 16 (sixteen) mono audio streams per SDI I/O are supported, or all 64 channels can arrive on a single audio stream and then shuffled to the appropriate SDI output
Whitepaper: Precision Time Protocol (PTP)
The objective of this document is to provide basic information on PTP including some details on what this protocol is, listing the hard aspects, reviewing what makes a good PTP Grandmaster, listing some best practices and describing what is next for PTP.
A place for online self-directed learning of the Ross Newt.
Ross Video Communities!
The platform offers a place for live production professionals to come together to share their experiences, solve problems, find answers to questions and discuss best practices.
|ORDERING CODE||NEWT ACCESSORIES|

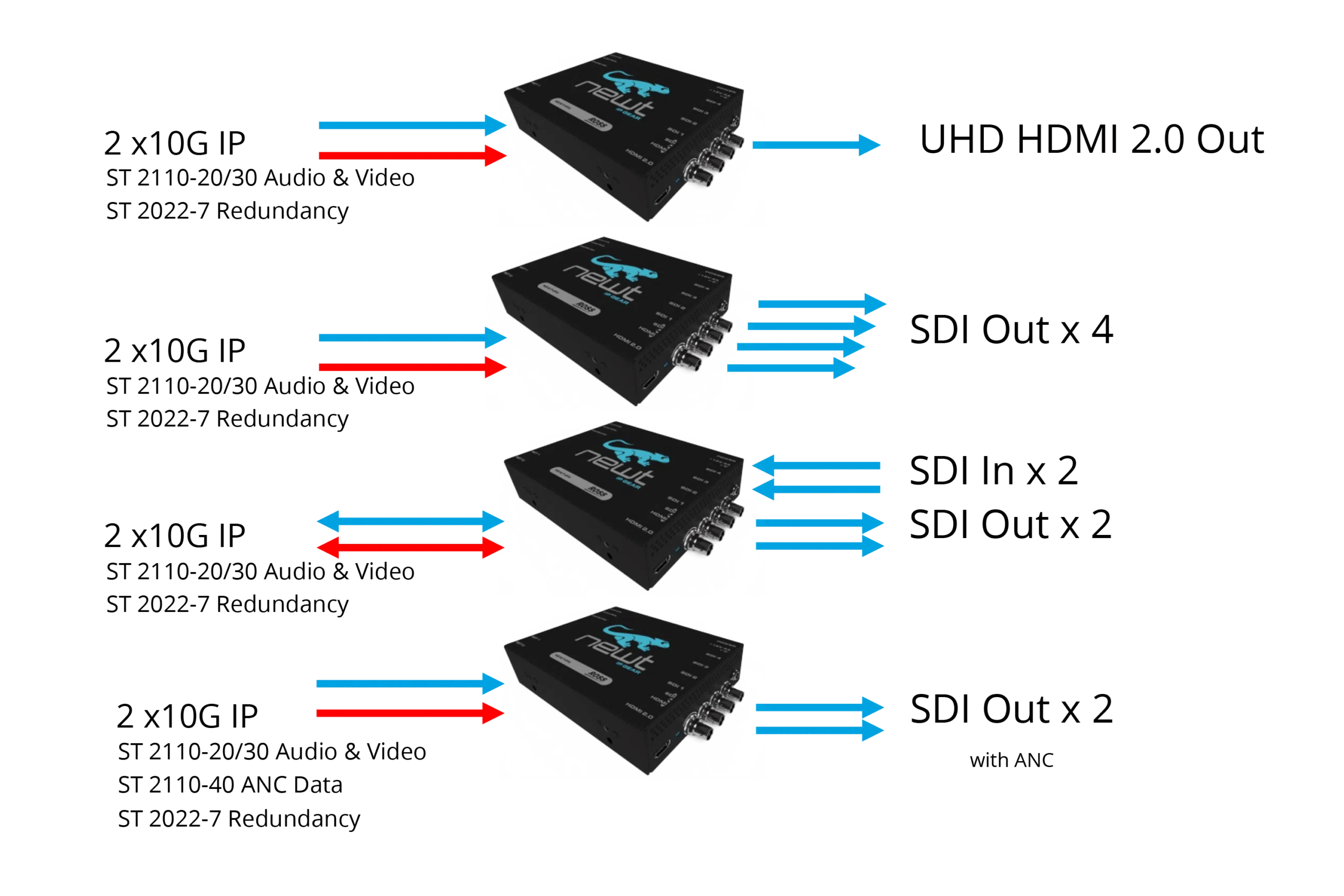

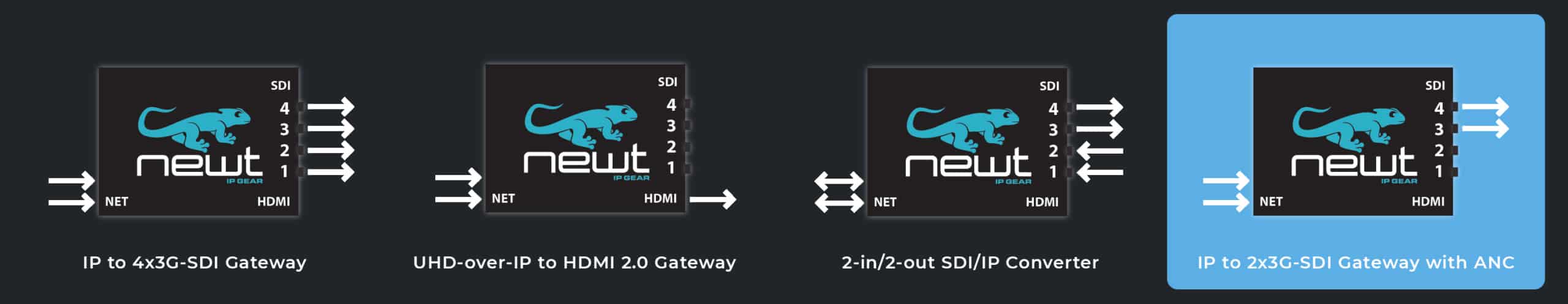

|NEWT-IPX-PKG||Newt ST 2110 / SDI and HDMI converter. Supports ST 2110 4xSDI, ST 2110 HDMI 2.0, ST 2110/SDI 2×2 bidirectional mode, and ST 2110 2xSDI with ANC.|
|SFP-10GBASE-SR||SFP+ Module, 10G Ethernet, 300m reach, Multimode fiber|
|SFP-10GBASE-LR||SFP+ Module, 10G Ethernet, 10km reach, Single mode fiber|
|GEAR-SHELF||1RU rackmount shelf for Newt and Iggy|
|GEAR-BRKT-EARS||“Ear” brackets for Newt and Iggy|
|GEAR-VESA100||VESA 100mm bracket mount kit for Newt and Iggy|
