Tally Control Systems

ECP-16

I/O Connection Panels

The ECP line of GPI breakout frames provide a low-cost solution to many of today’s remote and facility GPI needs.

Similar to the TXP-16 product, the ECP line of GPI breakout frames provide a low-cost solution to many of today’s remote and facility GPI needs. Coupled with the TXI-48, the ECP provides additional configuration and simplicity and can be found on the latest IP-enabled OB vans as a critical tool.
ECP-I16

  • Inputs are individually switch-selectable as wet or dry
  • Wet inputs are isolated and polarity insensitive
  • Front panel switch to select dry input and dry pull-up power source
  • LED status indicator for each input and dry input pull-up supply
  • 5-way binding posts for each input and external supply
  • Outputs are individually switch selectable as wet or dry
ECP-O16

  • Dry outputs are isolated
  • Front panel switch to select wet output power source
  • LED status indicator for each output and output wetting supply
  • 5-way binding posts for each output and external supply
  • 1-year transferable warranty

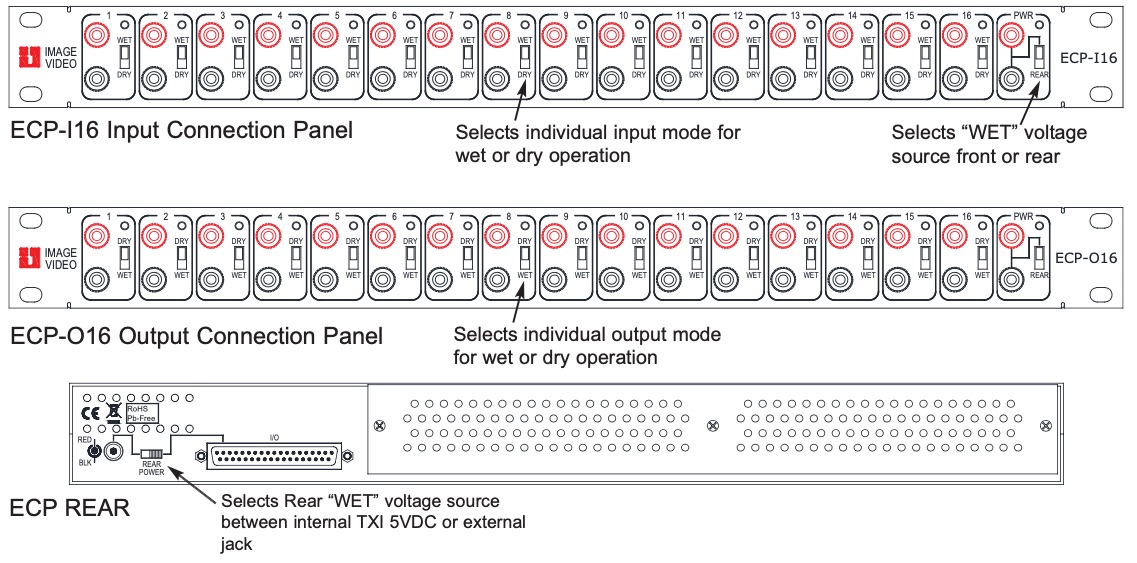

I/O Connection Panels
ECP-I16 Input Connection Panel
ECP-O16 Output Connection Panel
