BACH openModule
ST2110 AES67 Audio Networking Module & PDK
Give Your Products the Freedom and Power to Perform Across Markets
AES67 / SAP (for Dante AES67) / RAVENNA / ST2110 / NMOS, in one package.
BACH-openModule is the ultimate channel capacity audio networking solution featuring fully compliant AES67 and ST2110 transport along with a rich control layer.
The BACH-openModule delivers 512×512 channels of audio, at ultra-low latencies of 125 µs, and glitchless stream redundancy using dual-Gigabit Ethernet audio-over-IP interfaces.
- Accelerate the introduction of your product into multiple markets in one easy step
- Lower your overall system cost
- Differentiate your product via customization, such as your own workflow controller that is tailored to your customers’ needs
The BACH-openModule is offered in the following software-defined configurations:
| ORDERING CODE | DESCRIPTION | CUSTOMIZABLE | MAX AUDIO CHANNELS | MAX AUDIO STREAMS | NETWORK REDUNCANCY | AUDIO I/O |
|---|---|---|---|---|---|---|
| COV-BACH-OM512 | Ultimate Capacity | SDK | 512 | 128+128 | Stream & Dual GE PHY | 16+16 x I32S |
| COV-BACH-OM256 | High Performance | SDK | 256 | 32+32 | Stream & Dual GE PHY | 8+8 x I32S |
| COV-BACH-OM128 | Lowest System Cost | SDK | 128 | 32+32 | Stream & Dual GE PHY | 8+8 x I16S |

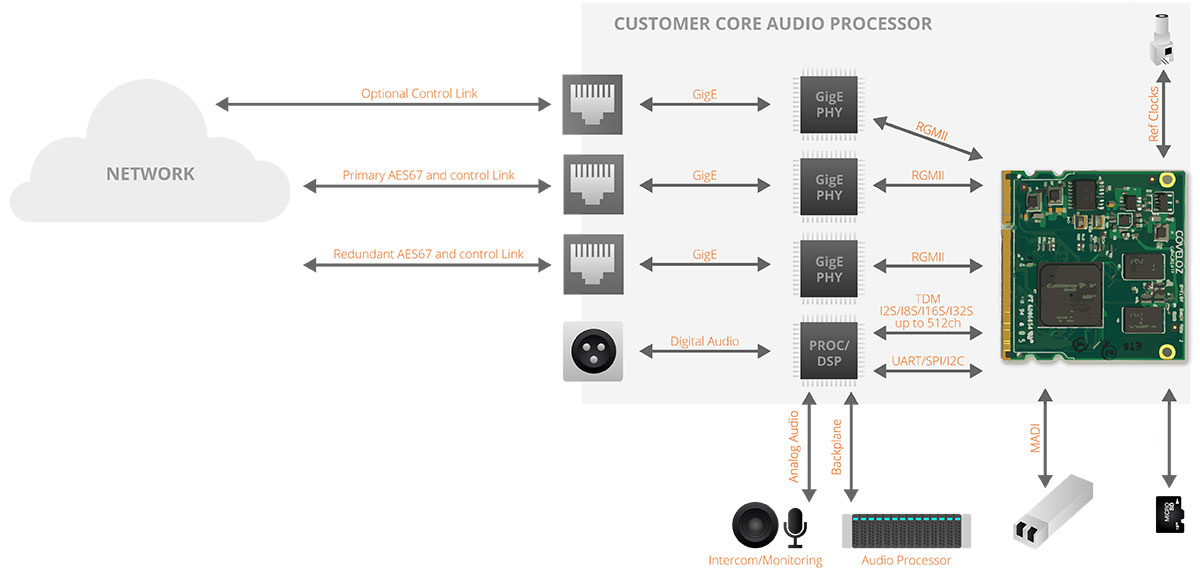

openModule has the interfaces, customizations, and reference material to let you add IP capabilities while letting your brand and features take center stage.
Increase product revenues from Broadcast markets with a simple integration of the standards compliant BACH-openModule.
| FEATURES | BACH OPENMODULE |
|---|---|
| System on Module | Full Integrated with SoC FPGA and Memories |
| Network Transport | AES67 and ST2110-30/31 |
| Max. Channels per Direction | 512 |
| Streams per Direction | 128 |
| Channels per Stream | 1 to 80 |
| Sample Rate | 44.1/88.2kHz and 48/96kHz |
| Audio Encoding | L16, L24, L32 (16, 24 and 32bit) & AM824 for AES3 transparent transport |
| Glitchless Redundancy | Port and Stream, per ST2022-7 |
| Packet Time / Latency | 125μs or 1ms |
| Network I/O | 3x RGMII |
| Programmable TDM I/F | I2S, I8S, I16S, I32S |
| Control I/O | UART |
| Discovery & Registration | NMOS IS-04, RAVENNA, ANEMAN, SAP (for Dante AES67) |
| Connection Control | NMOS IS-05, ANEMAN, JSON API |
| Telemetry & Configuration | JSON API & CLI |
| Mechanical Specifications | 68mm x 65mm, SODIMM edge connector |
| Upgrades | Future ready via in-system upgrades |
| Customization | Re-branding, WebUI, Available Software and FPGA Development Kits |
The BACH Virtuoso Audio-over-IP PDK (Product Development Kit) includes everything you need to evaluate and integrate Ross Video’s BACH technology into your products.

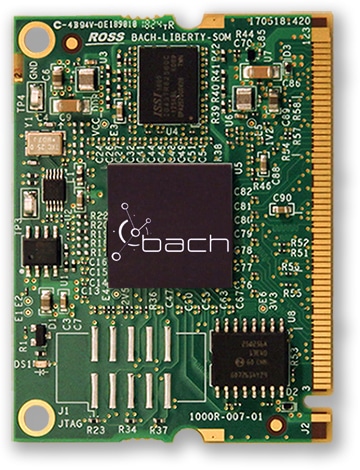

The BACH Virtuoso PDK showcases the entire BACH family, including BACH openModule, BACH Liberty, and BACH Minuet.

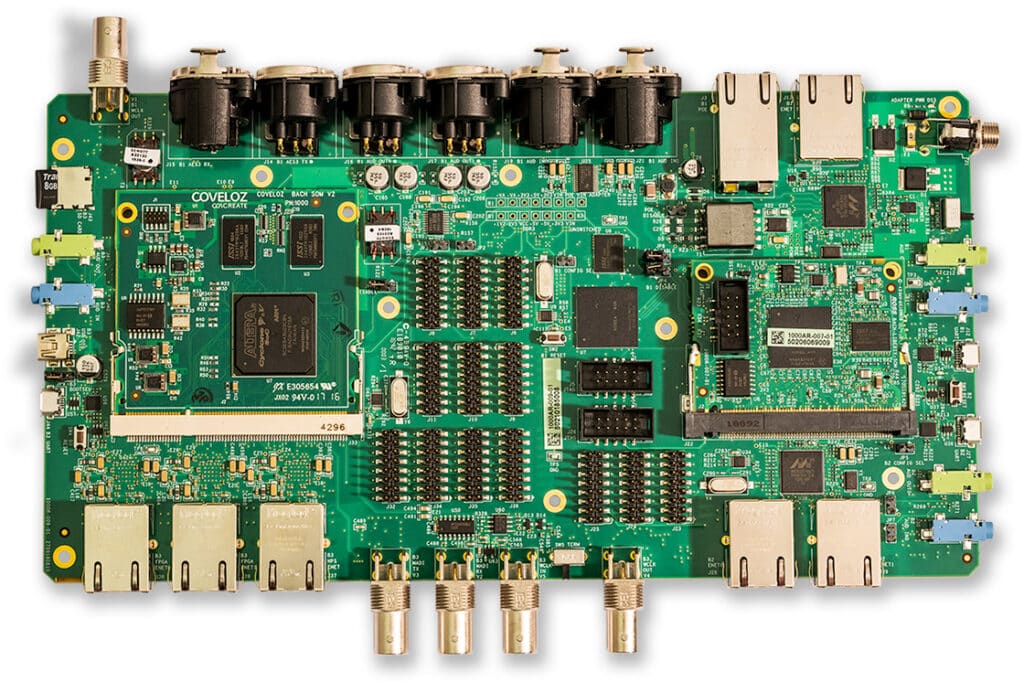

BACH Virtuoso has the audio and control interfaces you need for a thorough product evaluation:
|
|
BACH Virtuoso Audio-over-IP PDK includes schematics and hardware reference guides to help quickly integrate BACH into your products.
| ORDERING CODE | DESCRIPTION |
|---|---|
| COV-BACH-OM512 | BACH openModule 512×512 System on Module (SOM) |
| COV-BACH-OM256 | BACH openModule 256×256 System on Module (SOM) |
| COV-BACH-OM128 | BACH openModule 128×128 System on Module (SOM) |
| COV-BACH-VIRTUOSO-PDK | BACH Virtuoso Audio-over-IP Product Development Kit, with BACH Liberty, BACH openModule, and BACH Minuet |
| COV-BACH-OM-SDK | BACH openModule Software Development Kit |
